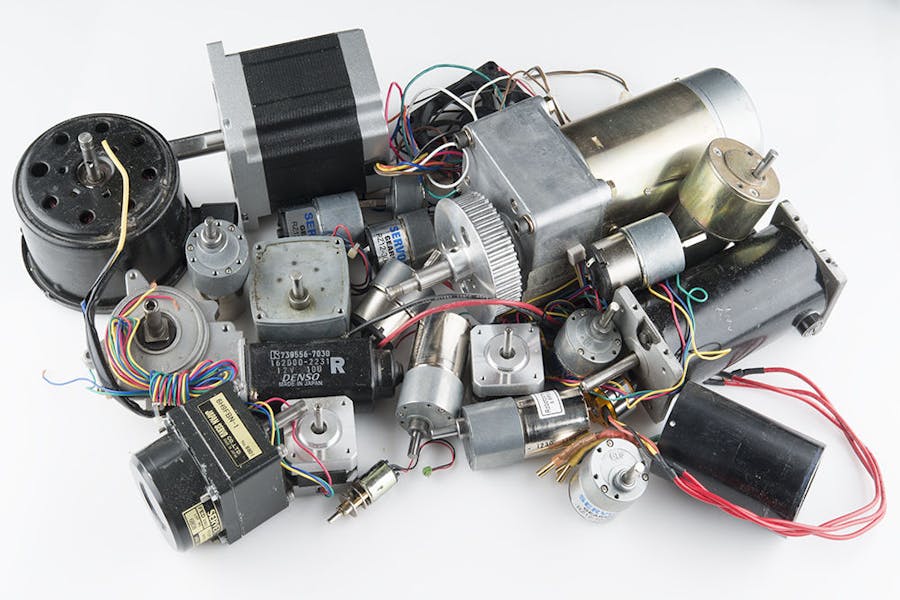

Complete Motor guide for Robotics

Robot is an electromechanical device which is capable of reacting in some way to its environs, and take democratic decisions or action...

Beginner Full instructions provided 58,018

Story

Different types of motors

Robot is an electromechanical device which is capable of reacting in some mode to its surroundings, and take autonomous decisions or actions in guild to achieve a specific chore.

Roboticists develop man-made mechanical devices that can move by themselves, whose motion must be modelled, planned, sensed, actuated and controlled, and whose motion behavior can be influenced past "programming".

This definition implies that a device can only be called a "robot" if it contains a movable mechanism, influenced past sensing, planning, actuation and control components. Motors and actuators are the devices which brand the robot movable. Motors and actuators convert electrical energy into physical motility. The vast majority of actuators produce either rotational or linear motion.

In this commodity I volition explicate more common types of motors and actuators, their nuts and how to command them.

Footstep i: Types of Motors

You already know that electrical motors are used to "actuate" something in your robot: its wheels, legs, tracks, arms, fingers, sensor turrets, camera, or weapon systems. There are literally dozens of types of electric motors but I will hash out the virtually mutual types used in amateur robotics. Motors are classified as:

• Air-conditioning motor

• Brushed DC motor

• Brushless DC motor

• Geared DC motor

• Servo motor

• Stepper motor

• DC Linear Actuator

AC (alternating current) motors are rarely used in mobile robots considering most of the robots are powered with direct current (DC) coming from batteries. Also, since electronic components use DC, it is more convenient to have the aforementioned type of power supply for the actuators likewise. AC motors are mainly used in industrial environments where very loftier torque is required, or where the motors are continued to the mains / wall outlet. And so, I will non explain well-nigh Ac motors here.

Step 2: Motor Controller

A motor controller is an electronic device that helps microcontroller to control the motor. Motor controller acts as an intermediate device betwixt a microcontroller, a power supply or batteries, and the motors.

Although the microcontroller (the robot's brain) decides the speed and management of the motors, it cannot drive them directly because of its very express ability (current and voltage) output. The motor controller, on the other hand, tin provide the current at the required voltage simply cannot decide how the motor should run.

Thus, the microcontroller and the motor controller accept to work together in club to make the motors move appropriately. Usually, the microcontroller can instruct the motor controller on how to ability the motors via a standard and elementary communication method such equally UART or PWM. Too, some motor controllers can be manually controlled by an analogue voltage (usually created with a potentiometer).

The physical size and weight of a motor controller can vary significantly, from a device smaller than the tip of your finger used to control a mini sumo robot to a large controller weighing several Kg. The size of a motor controller is usually related to the maximum current it tin can provide. Larger electric current ways larger size.

Since there are several types of motors, there are several types of motor controllers (different type of motor requires unlike type of controller) :

• Brushed DC motor controllers: used with brushed DC, DC gear motors, and many linear actuators.

• Brushless DC motor controllers: used with brushless DC motors.

• Servo Motor Controllers: used for hobby servo motors.

• Stepper Motor Controllers: used with unipolar or bipolar stepper motors depending on their kind.

Pace 3: Brushed DC Motor

1 / 6 • Internal construction of DC motor

A brushed DC motor is one which uses 2 brushes to conduct current from source to armature. There are several variations on the brush DC motor, just permanent magnet DC motor (PMDC) is used extensively in robotics. Brushed DC motors are widely used in applications ranging from toys to push-button adjustable auto seats. Brushed DC (BDC) motors are inexpensive, easy to drive, and are readily available in all sizes and shapes.

The brush DC Motor consists of six unlike components: the beam, armature/rotor, commutator, stator, magnets, and brushes. A Castor DC Motor consists of ii magnets facing the same direction, that surrounding 2 coils of wire that reside in the eye of the Castor DC Motor, around a rotor. The coils are positioned to face the magnets, causing electricity to flow to them. This generates a magnetic field, which ultimately pushes the coils abroad from the magnets they are facing, and causes the rotor to plough.

The Brush DC Motor has ii terminals; when voltage is applied across the ii terminals, a proportional speed is outputted to the shaft of the Brush DC Motor. A Castor DC Motor consists of two pieces: the stator which includes the housing, permanent magnets, and brushes, and the rotor, which consists of the output shaft, windings and commutator. The Brush DC Motor stator is stationary, while the rotor rotates with respect to the Castor DC Motor stator.The stator generates a stationary magnetic field that surrounds the rotor. The rotor, also called the armature, is made upwards of one or more windings. When these windings are energized they produce a magnetic field. The magnetic poles of this rotor field will exist attracted to the contrary poles generated by the stator, causing the rotor to turn. Every bit the motor turns, the windings are constantly being energized in a different sequence and so that the magnetic poles generated by the rotor practise not overrun the poles generated in the stator. This switching of the field in the rotor windings is chosen commutation.

Unlike other electric motor types (i.e., brushless DC, Air-conditioning induction), BDC motors do not require a controller to switch current in the motor windings. Instead, the substitution of the windings of a BDC motor is done mechanically. A segmented copper sleeve, chosen a commutator, resides on the beam of a BDC motor. Every bit the motor turns, carbon brushes slide over the commutator, coming in contact with different segments of the commutator. The segments are fastened to different rotor windings, therefore, a dynamic magnetic field is generated inside the motor when a voltage is applied beyond the brushes of the motor. It is important to note that the brushes and commutator are the parts of a BDC motor that are well-nigh prone to wear because they are sliding past each other.

Applications:

• Toys
• RC Servos
• Gear Motors

Advantages:

• Inexpensive
• Lightweight
• Reasonably Efficient
• Good low-speed torque

Limitations: In addition to the audible whine from the commutator brushes, these motors create a lot of electrical noise which can discover its style back into other circuitry and cause issues.

Visit for DC motor: https://www.sparkfun.com/categories/247

Step four: Controlling of Brushed DC Motor

1 / 9 • Motor controller circuit using 555timer

By the term controlling I hateful both direction control and the speed control . The management of the DC motor can be reverse by but reversing the polarity of the battery connection. The speed of the motor can be control by irresolute the voltage level and dc voltage level can be changed by PWM signal. For college voltage level speed volition be higher and for lower voltage level speed will also be lower.

Practically, Drive circuits are used in applications where a controller of some kind is being used and speed control is required. The purpose of a drive excursion is to give the controller a fashion to vary the current in the windings of the BDC motor. The drive circuits discussed in this section allow the controller to pulse width attune the voltage supplied to a BDC motor. Information technology is more than efficient style to vary the speed of a BDC motor compared to traditional analog command methods. In some cases the motor but needs to spin in one direction then a single switch topology with PWM modulation tin exist used to vary the voltage practical to the motor and thus to control its speed. The higher the PWM duty cycle, the faster the motor will go. Effigy shows circuit for driving a BDC motor in 1 management using single FET (field event transistor).

Simple motor controller using transistor

Notation that in the circuit there is a diode beyond the motor. This diode is at that place to prevent Back Electromag- netic Flux (BEMF) voltage from harming the MOSFET. BEMF is generated when the motor is spinning. When the MOSFET is turned off, the winding in the motor is still charged at this point and volition produce contrary current flow. D1 must be rated appropriately so that information technology volition misemploy this current.

Resistors R1 and R2 in the Figure are important to the operation of the excursion. R1 protects the microcontroller from electric current spikes while R2 ensures that transistor is turned off when the input pin is tristated.

When positioning is required or when both directions of rotation are needed (well-nigh robots demand) a full H-bridge with PWM command is used. The H-Span is a 4-transistor circuit that allows you to contrary the current menses to the motor. With an H-Bridge and a PWM pivot, you tin can control both the speed and management of the motor.

To understand please follow the side by side step.

Pace five: H Span

A H bridge is an electronic excursion that enables a voltage to be applied beyond a load in either direction. These circuits are frequently used in robotics and other applications to allow DC motors to run forwards and backwards.

An H-bridge is a transistor-based circuit capable of driving motors both clockwise and counter-clockwise. Information technology's an incredibly popular excursion – the driving strength behind endless robots that must be able to move both forrard and astern. Fundamentally, an H-span is a combination of four transistors with two inputs lines and two outputs:(Note: there's usually quite a chip more to a well-designed H-bridge including flyback diodes, base resistors and Schmidt triggers.)

To understand this, the H-bridge must exist broken into its two sides, or one-half-bridges. Referring to Q1 and Q2 make up one half-bridge while Q3 and Q4 make up the other half-bridge.

Each of these one-half-bridges is able to switch one side of the BDC motor to the potential of the supply voltage or basis. When Q1 is turned on and Q2 is off, for instance, the left side of the motor volition be at the potential of the supply voltage. Turning on Q4 and leaving Q3 off volition ground the opposite side of the motor. The switching elements (Q1..Q4) are normally bi-polar or FET transistors, in some high-voltage applications IGBTs.

Annotation the diodes across each of the transistor (D1-D4).These diodes protect the transistors from current spikes generated by BEMF when the transistors are switched off. The elevation-cease of the bridge is connected to a power supply (battery for example) and the bottom-end is grounded.

A capacitor can be used with parallel to the diode. Just it is optional. The value of these capacitors is generally in the x pF range. The purpose of these capacitors is to reduce the RF radiation that is produced by the arching of the commutators.

Forward direction switching

The basic operating mode of an H-bridge is fairly uncomplicated: if Q1 and Q4 are turned on, the left atomic number 82 of the motor will be connected to the ability supply, while the correct lead is connected to ground. Electric current starts flowing through the motor which energizes the motor in (permit'south say) the forward direction and the motor shaft starts spinning.

..............................................................................................................

Opposite direction switching

If Q2 and Q3 are turned on, the contrary will happen, the motor gets energized in the reverse direction, and the shaft will offset spinning backwards.

.............................................................................................................................................................................................

In a bridge, you should never ever close both Q1 and Q2 (or Q3 and Q4) at the same time. If you did that, y'all simply have created a really low-resistance path between ability and GND, effectively short-circuiting your power supply. This condition is chosen 'shoot-through' and is an almost guaranteed way to quickly destroy your span, or something else in your circuit.

In that location are many different models and brands of H-Bridge IC is available. Near commonly used are Texas Instruments L293NE or a Texas Instruments SN754410 and L298 from STMicroelectronics.

L293D

The L293NE/SN754410 is a very basic H-bridge. It has two bridges, one on the left side of the chip and ane on the correct, and can control two motors. It can drive up to 1 amp of current, and operate betwixt 4.5V and 36V. The small DC motor generally used in robot bots tin run safely off a depression voltage and then this H-bridge will work just fine.

The H-bridge has the following pins and features:

• Pin 1 (one,2EN) enables and disables our motor whether it is give Loftier or LOW
• Pin 2 (1A) is a logic pin for our motor (input is either HIGH or LOW)
• Pin three (1Y) is for one of the motor terminals
• Pin 4-5 are for footing
• Pin half dozen (2Y) is for the other motor concluding
• Pivot 7 (2A) is a logic pin for our motor (input is either HIGH or LOW)
• Pin 8 (VCC2) is the power supply for our motor, this should be given the rated voltage of your motor
• Pin 9-11 are unconnected as you are only using ane motor in this lab
• Pin 12-13 are for footing
• Pin 14-15 are unconnected
• Pivot 16 (VCC1) is connected to 5V Below is a diagram of the H-bridge and which pins do what in our case.
• Included with the diagram is a truth tabular array indicating how the motor will function according to the state of the logic pins (which are gear up by our Arduino).

Bear in mind that all motors are available in different sizes.

Pocket-sized motors are engineered for applications where firmness is valued over torque. While at that place are minor high-torque motors, these tend to be expensive because they employ rare globe magnets, loftier efficiency bearings, and other features that add to their cost.Big motors may produce more than torque, only as well require higher currents. High electric current motors require larger capacity batteries, and bigger control circuits that won't overheat and burn out under the load. Therefore, match the size of the motor with the rest of the robot. Don't overload a small robot with a large motor when big size isn't important.When decided on the size of the motor, compare bachelor torque after any gear reduction. Gear reduction always increases torque. The increase in torque is proportional to the amount of gear reduction: if the reduction is iii:1, the torque is increased by about three times (but not quite, because of frictional losses).

For H-bridge IC and module delight visit :

https://www.sparkfun.com/search/products?term=h%20...

Pace vi: Arduino DC Motor Control

1 / ix • Arduino DC motor control

Every bit y'all already know DC motor must not connect directly to arduino pin considering it can burn down your arduino. So you must connect a transistor betwixt arduino and motor. Let'due south first control a small DC motor using unmarried transistor. Using single transistor you know only speed tin can be control. PWM is used to control speed of a DC motor. Connect your circuit as Figure-1. Arduino PWM pin must be connected to the base pin of transistor.

                              See code snippet #one

Now, connect the motor using H-Span IC (I used L293 here). Follow Fig-3 & Fig-4. We can control both speed and direction at present. Pin ix is used equally PWM pin and a switch is added to control the speed.

                              Run across lawmaking snippet #2

L293 is a dual H bridge IC. Then, y'all tin command two motor by single IC. Connect two motor to the IC every bit like figure 5 and utilize the following code. Make modification according to your requirement.

                              See code snippet #3

.

Step 7: DC Gear Motor

Geared DC motors can be divers as an extension of DC motor which already had its Insight details demystified before. A geared DC Motor has a gear associates attached to the motor. The speed of motor is counted in terms of rotations of the shaft per minute and is termed as RPM .The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to whatsoever desirable figure. This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction. This Insight will explore all the pocket-size and major details that make the gear caput and hence the working of geared DC motor.

Working of the DC Geared Motor

The DC motor works over a fair range of voltage. The college the input voltage more is the RPM (rotations per minute) of the motor. For example, if the motor works in the range of 6-12V, it will take the least RPM at 6V and maximum at 12 V. In terms of voltage, we tin can put the equation equally: RPM= K1 * V, where, K1= induced voltage abiding 5=voltage applied.

The working of the gears is very interesting to know. It can exist explained by the principle of conservation of angular momentum. The gear having smaller radius will cover more RPM than the ane with larger radius. However, the larger gear will give more torque to the smaller gear than vice versa. The comparison of athwart velocity between input gear (the one that transfers free energy) to output gear gives the gear ratio. When multiple gears are connected together, conservation of energy is also followed. The direction in which the other gear rotates is always the opposite of the gear adjacent to information technology. In any DC motor, RPM and torque are inversely proportional. Hence the gear having more torque will provide a lesser RPM and antipodal. In a geared DC motor, the concept of pulse width modulation is applied.

For example, an unloaded DC motor might spin at 12000 rpm and provide 0.1 kg-cm of torque. A 225:1 geardown is added to proportionally reduce the speed and increase the torque: 12000 rpm / 225 = 53.3 rpm and 0.1 x 225 = 22.five kg-cm. The motor will now exist able to motility significantly more weight at a more than reasonable speed.

In a geared DC motor, the gear connecting the motor and the gear head is quite small, hence it transfers more than speed to the larger teeth part of the gear head and makes information technology rotate. The larger part of the gear further turns the smaller duplex function. The minor duplex part receives the torque only not the speed from its predecessor which it transfers to larger part of other gear and and then on. The 3rd gear's duplex part has more teeth than others and hence information technology transfers more torque to the gear that is continued to the shaft.

Decision-making of Geared Motor

DC gear motor can be controlled exactly the same style DC motor control.

Applications:

• Robot Drive Trains
• Radio Control Vehicles
• Cordless Tools

Advantages:

• Speed Reduction - Many DC motors only run too fast to exist useful in direct-bulldoze applications.
• Increased Torque - A lot of piece of work can be coaxed from a relatively small motor if fitted with a suitable gear railroad train.

Limitations: This is especially a problem with depression-cost plastic gear trains used with depression-voltage motors. The extra resistance can make these gear-trains averse at depression speeds.

For Controller & Motor browse: world wide web.sparkfun.com

Step 8: Brushless DC Motor

ane / eight • ESC of brushless DC motor

Brushless DC (BLDC) motors are called past many names: brushless permanent magnet, permanent magnet ac motors, permanent magnet synchronous motors etc. The defoliation arises because a brushless dc motor does not directly operate from a dc voltage source. However, as we shall see, the bones principle of functioning is like to a dc motor.

A BLDC has a rotor with permanent magnets and a stator with windings. It is essentially a dc motor turned inside out. The brushes and commutator have been eliminated and the windings are connected to the control electronics. The command electronics supercede the part of the commutator and energize the proper winding. Every bit shown in the animation, the winding are energized in a pattern which rotates around the stator. The energized stator winding leads the rotor magnet, and switches just as the rotor aligns with the stator. There are no sparks, which is one advantage of the BLDC motor.

The brushes of a dc motor have several limitations; castor life, brush residuum, maximum speed, and electrical noise. BLDC motors are potentially cleaner, faster, more efficient, less noisy and more than reliable. However, the BLDC motor requires electronic control.

And then the structure of a brushless DC motor is very similar to the AC motor making it a truthful synchronous motor but 1 disadvantage is that information technology is more expensive than an equivalent "brushed" motor pattern.

Inrunners vs Outrunners

There are ii types of Brushless RC motors, inrunners and outrunners .

The permanent magnets of inrunner brushless motors are positioned on the inside of the electromagnets. An outrunner brushless motor has the permanent magnets on the outside of the electromagnets.

The faster a motor spins, the more efficient information technology is. Inrunner motors turn very fast and are much more than efficient than outrunner motors. Inrunner Brushless RC Motors require a speed reducing gearbox between the motor and propeller of your RC plane.

The downside of an inrunner is the added parts that tin and exercise fail. The gears get stripped, and the gearbox shafts are hands bent. Information technology tin also exist an obstacle when mounting the gearbox motor combination for your RC aeroplane neatly, particularly under a cowling.

Theory of Operation

The mechanics of a brushless motor are incredibly uncomplicated. The only moving role is the the rotor, which contains the magnets. Where things get complicated is orchestrating the sequence of energizing windings. The polarity of each winding is controlled by the direction of current flow. The animation demonstrates a elementary pattern that controllers would follow. Alternate current changes the polarity, giving each winding a "push button/pull" upshot. The trick is keeping this design in sync with the speed of the rotor. There are two (widely used) means this tin be accomplished. Virtually hobby controllers mensurate the voltage produced (back EMI) on the un-energized winding. This method is very reliable in high velocity operation. Equally the motor rotates slower, the voltage produced becomes more difficult to measure and more errors are induced. Newer hobby controllers and many industrial controllers use Hall issue sensors to measure the magnets position directly. This is the primary method for controlling computer fans.

Performance of brushless motor

Control

The control of the brushless DC motors is very different from the normal brushed DC motor, in that it this blazon of motor incorporates some means to detect the rotors angular position (or magnetic poles) required to produce the feedback signals required to control the semiconductor switching devices. The most mutual position/pole sensor is the "Hall Effect Sensor", but some motors besides utilize optical sensors. Using Hall effect sensors, the polarity of the electromagnets is switched by the motor control drive circuitry. Then the motor can be easily synchronized to a digital clock signal, providing precise speed control. Brushless DC motors can be constructed to accept, an external permanent magnet rotor and an internal electromagnet stator or an internal permanent magnet rotor and an external electromagnet stator.

Timing diagram of brushless motor

In effigy 4 (A), the GREEN winding labeled "001" is energized equally the NORTH pole and the Blueish winding labeled equally "010" is energized as the SOUTH pole. Considering of this excitation, the South pole of the rotor aligns with the GREEN winding and the North pole aligns with the RED winding labeled "100". In lodge to move the rotor, the "Cherry" and "BLUE" windings are energized in the direction shown in effigy 4(B). This causes the RED winding to become the NORTH pole and the BLUE winding to become the SOUTH pole. This shifting of the magnetic field in the stator produces torque considering of the development of repulsion (Cherry winding – NORTH-NORTH alignment) and attraction forces (BLUE winding – NORTH-Southward alignment), which moves the rotor in the clockwise direction.

Speed Control

Brushless dc motor are actually three stage ac motors. To controll the speed an electronic speed command or ESC is used. Brushless ESC systems basically create a tri-phase AC power output of express voltage from an onboard DC power input, to run brushless motors by sending a sequence of AC signals generated from the ESC's circuitry, employing a very low impedance for rotation. Brushless motors, otherwise called outrunners or inrunners depending on their physical configuration, have go very popular with "electroflight" radio-control aeromodeling hobbyists because of their efficiency, ability, longevity and light weight in comparison to traditional brushed motors. Nevertheless, brushless AC motor controllers are much more than complicated than brushed motor controllers.

The right phase varies with the motor rotation, which is to be taken into account by the ESC: Usually, back EMF from the motor is used to notice this rotation, simply variations exist that apply magnetic (Hall Upshot) or optical detectors. Reckoner-programmable speed controls generally have user-specified options which allow setting low voltage cut-off limits, timing, acceleration, braking and direction of rotation. Reversing the motor's direction may also be accomplished by switching whatsoever two of the three leads from the ESC to the motor.

Current Rating of ESC An ESC will take a ability limit. To handle more power, the ESC needs to exist larger, heavier, and is more expensive. It's important to know the acme current your motor is going to pull at total throttle. This determines the current rating you should look for in an ESC. Always choose an ESC with a current rating that is higher than what yous need. If the motor is going to pull 12A, a 25A-rated ESC is a much amend choice than a 10A-rated one. The 10A ESC will probably overheat and melt, even if you but fly at half throttle. ESCs are relatively light and maintain great resale value, so this is i detail in your ability system where skimping isn't worth while. Choosing the correct blazon and identifying the minimum current rating are the two big steps. The next choices depend on your preferences.

Voltage Rating

All ESCs have voltage limits. Some even accept more than ane! What is your battery voltage? Choose an ESC that is designed to piece of work with an equal or college voltage. Some ESCs are designed for depression voltages (below 13V), some for medium voltages (below 25V), and some for loftier voltages (above 25V). Y'all shouldn't connect a high voltage battery to a depression voltage ESC, just information technology is also wasteful to use a high voltage ESC with a low voltage bombardment.

Advantages

Advantages of the Brushless DC Motor compared to its "brushed" cousin is college efficiencies, high reliability, low electrical racket, skilful speed command and more than importantly, no brushes or commutator to wear out producing a much higher speed. All the same their disadvantage is that they are more expensive and more than complicated to control.

Arduino Control

Brushless motors designed for autonomous and remote control aircraft and vehicles typically crave a split up controller. These are typically of the sensorless type and apply standard servo type pulsed signals for speed control.

Decision-making BLDC motor is very easy. Most of the ESCs demand a 50Hz frequency i.e. a 20 ms cycle and the speed depends upon the duty wheel you lot provide. 1ms volition reduce its speed to minimum or even stop information technology (information technology depend upon the ESC model) while a 2ms pulse will run the motor on its fullest speed. The values betwixt them give you lot a variation in speed.

Usually ESCs demand a voltage higher than the one provided by the Arduino from his 5V pin: typically they need 2 LiPo cells (around 8V). To achieve that all the circuit must exist powered from an external ability supply continued straight to the ESC and not via the Arduino, which will be powered by the BEC circuit of the ESC. To make that happen information technology's enough to connect the red and black of the command connector to the 5V and GDN of the Arduino board.

The residue of the circuit is pretty easy: from pin 9 of the Arduino nosotros have the signal for the ESC, and into pin 0, the voltage reading from the potentiometer comes in.

Sometimes ESC needs calibration and in terms of ESCs, calibration means to fix the max and min speeds of the motor in relation to the max and min width of the PWM bespeak sent past the Arduino. The PWM point read by the ESC is the same type as a servo signal, meaning the Servo library from Adruino tin be used to calibrate and control the ESCs. The ESC sets the speed of the motor depending on the ratio of high to depression signals. Scale involves programming the ESC to understand the PWM waves corresponding to the cease and maximum speeds of the motor.

The default signal range for virtually servo motors and ESCs is a loftier betoken width between grand and 2000 microseconds over a repetition period of 20 milliseconds (assuming a 50hz PWM signal). For the quad copter, all the same, we want the range to be as wide every bit possible to permit for greater incremental command of the motor. To this end, we calibrated the ESCs to read a signal width from 700 to 2000 microseconds with 700 being the stop speed and 2000 being the max speed. Some ESC could not read a signal lower than 700 microseconds.

Calibrating the ESCs is quite elementary. To enter programming mode, the maximum servo indicate (2000 microseconds) is sent to the ESC, the ESC is powered on and waits for two seconds, then the minimum servo signal is sent (700 microseconds). In one case the ESC emits a series of confirmation beeps (special wave signals sent to the motor to emit beeping sounds), the ESC is calibrated (check the ESC specific datasheet for details).

                              See code snippet #4

It just takes the reading of the "throttle", maps it from 0-1023 to 0-179 (analog reading to servo "degrees") then sends it to the ESC via the Servo library. Even in its farthermost simplicity this sketch it very useful when you want to calibrate a new ESC to work with the Servo library of Arduino.

Applications:

• Multicopters
• Drones
• Radio Command Vehicles
• Disk Drives
• Fans
• Industrial Servos
• Hybrid Vehicles
• Loftier-End Gearmotors

Advantages:

• Quiet
• Efficient

Limitations: Some types of brushless motors require a divide controller for operation.

For brushless DC motor visit https://world wide web.sparkfun.com/categories/245

Step 9: Servo Motor

1 / 6 • Internal structure of servo motor

A servo motor is an electric device which can button or rotate an object with keen precision. If you lot want to rotate and object at some specific angles or distance, and so you utilize servo motor. It is just fabricated upwards of simple motor which run through servo mechanism. If motor is used is DC powered and so it is chosen DC servo motor, and if it is Air conditioning powered motor and then it is called AC servo motor. Nosotros can get a very high torque servo motor in a pocket-sized and light weight packages. Doe to these features they are existence used in many applications similar toy motorcar, RC helicopters and planes, Robotics, Machine etc. The position of a servo motor is decided past electrical pulse and its circuitry is placed beside the motor.

Now solar day'south servo system has huge industrial applications. Servo motor applications are also unremarkably seen in remote controlled toy cars for decision-making direction of motility and it is also very commonly used as the motor which moves the tray of a CD or DVD player. Abreast these there are other hundreds of servo motor applications we meet in our daily life. The main reason behind using a servo is that information technology provides angular precision, i.e. information technology will only rotate as much nosotros want and so stop and wait for next betoken to take farther action. This is unlike a normal electrical motor which starts rotating as and when power is applied to it and the rotation continues until we switch off the power. Nosotros cannot control the rotational progress of electrical motor; but we tin can only control the speed of rotation and can plough information technology ON and OFF.

Servo Machinery It consists of three parts:

• Controlled device

• Output sensor

• Feedback organization

Information technology is a airtight loop system where information technology uses positive feedback arrangement to control motion and final position of the shaft. Here the device is controlled past a feedback betoken generated past comparing output indicate and reference input bespeak.

Hither reference input signal is compared to reference output betoken and the tertiary point is produces by feedback organization. And this third signal acts as input indicate to command device. This bespeak is present every bit long as feedback indicate is generated or there is divergence between reference input signal and reference output signal. So the chief chore of servomechanism is to maintain output of a organization at desired value at presence of noises.

Working principle of Servo Motors A servo consists of a Motor (DC or AC), a potentiometer, gear assembly and a controlling circuit. Commencement of all we apply gear assembly to reduce RPM and to increment torque of motor. Say at initial position of servo motor shaft, the position of the potentiometer knob is such that in that location is no electric point generated at the output port of the potentiometer. At present an electrical signal is given to another input last of the error detector amplifier. At present difference between these ii signals, one comes from potentiometer and another comes from other source, volition exist candy in feedback mechanism and output will be provided in term of error indicate. This error signal acts as the input for motor and motor starts rotating. Now motor shaft is connected with potentiometer and as motor rotates and so the potentiometer and it will generate a signal. Then as the potentiometer'due south angular position changes, its output feedback signal changes. Afterwards quondam the position of potentiometer reaches at a position that the output of potentiometer is aforementioned equally external indicate provided. At this condition, there will be no output signal from the amplifier to the motor input every bit in that location is no difference between external applied signal and the signal generated at potentiometer, and in this situation motor stops rotating.

Controlling Servo Motor:

Servo motor is controlled by PWM (Pulse with Modulation) which is provided by the control wires. There is a minimum pulse, a maximum pulse and a repetition rate. Servo motor can turn 90 degree from either direction class its neutral position. The servo motor expects to see a pulse every 20 milliseconds (ms) and the length of the pulse will determine how far the motor turns. For instance, a 1.5ms pulse will brand the motor turn to the xc° position, such equally if pulse is shorter than 1.5ms shaft moves to 0° and if it is longer than 1.5ms than it volition plough the servo to 180°. Servo motor works on PWM (Pulse width modulation) principle, ways its angle of rotation is controlled by the elapsing of applied pulse to its Control Pin. Basically servo motor is made up of DC motor which is controlled past a variable resistor (potentiometer) and some gears. High speed force of DC motor is converted into torque past Gears. We know that Piece of work= FORCE X Distance, in DC motor Force is less and distance (speed) is high and in Servo, force is High and distance is less. Potentiometer is connected to the output shaft of the Servo, to calculate the angle and stop the DC motor on required angle.

To epitomize, there are 2 important differences between the control pulse of the servo motor versus the DC motor. First, on the servo motor, duty bike (on-fourth dimension vs. off-time) has no significant whatsoever—all that matters is the absolute duration of the positive-going pulse, which corresponds to a allowable output position of the servo shaft. Second, the servo has its own ability electronics, so very little power flows over the command signal. All power is draw from its power lead, which must be simply hooked up to a high-current source of 5 volts.

Continuous Rotation Servo Motors

Continuous rotation servo motors are actually a modified version of what the servos are really meant to do, that is, command the shaft position. The 360° rotation servos are actually made by changing certain mechanical connections within the servo. However, sure manufacturer like parallax sells these servos as well. With the continuous rotation servo yous can simply control the direction and speed of the servo, but not the position.

Arduino Servo Command

Servo motors accept three wires: power, ground, and signal. The power wire is typically red, and should exist continued to the 5V pin on the Arduino or Genuino lath. The ground wire is typically black or chocolate-brown and should be connected to a basis pin on the board. The betoken pin is typically yellow, orange or white and should be connected to pin nine on the board.

Code

                              See lawmaking snippet #5

Applications:

• Robotics
• Animatronics
• Radio Control Cars/Boats/Planes

Advantages:

• Depression toll - (RC Servos) Smaller sized servos tin be purchased for but a few dollars.
• Variety - There is a broad range of sizes and torque ratings
• Simple to control - using logic level pulses from a microcontroller or a defended servo controller

Limitations: Most RC servos are limited to 180 degrees of motion and positioning accuracy and repeatability of +/- 1 degree is typical.

You can find dissimilar types of Servo motor at Sparkfun.com

Step 10: Stepper Motor

i / 5 • Internal construction of Stepper motor

A stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements. The shaft or spindle of a stepper motor rotates in detached step increments when electrical command pulses are applied to information technology in the proper sequence. The motors rotation has several directly relationships to these practical input pulses. The sequence of the practical pulses is directly related to the direction of motor shafts rotation. The speed of the motor shafts rotation is directly related to the frequency of the input pulses and the length of rotation is directly related to the number of input pulses applied.

Stepper motors are great motors for position control. They can be establish in desktop printers, plotters, 3d printers, CNC milling machines, and anything else requiring precise position control. Steppers are a special segment of brushless motors. They are purposely congenital for high-holding torque. This high-holding torque gives the user the ability to incrementally "stride" to the next position. This results in a simple positioning system that doesn't require an encoder. This makes stepper motor controllers very simple to build and utilise.

1 of the most significant advantages of a stepper motor is its power to be accurately controlled in an open loop system. Open up loop control means no feedback information about position is needed. This type of control eliminates the demand for expensive sensing and feedback devices such as optical encoders. Your position is known simply by keeping track of the input step pulses.

What are stepper motors skilful for?

A stepper motor can be a skilful selection whenever controlled movement is required. They tin exist used to advantage in applications where you need to control rotation angle, speed, position and synchronism.

Positioning – Since steppers motility in precise repeatable steps, they excel in applications requiring precise positioning such as 3D printers, CNC, Camera platforms and X,Y Plotters. Some disk drives also use stepper motors to position the read/write caput.

Speed Command – Precise increments of motility also allow for first-class control of rotational speed for process automation and robotics.

Low Speed Torque - Normal DC motors don't have very much torque at depression speeds. A Stepper motor has maximum torque at low speeds, so they are a skillful choice for applications requiring depression speed with high precision.

Theory of Operation

Functioning of stepper motor

Stepper motors behave exactly the same as a brushless motor, only the step size is much smaller. The simply moving part is the the rotor, which contains the magnets. Where things get complicated is orchestrating the sequence of energizing windings. The polarity of each winding is controlled by the management of electric current flow. The animation demonstrates a elementary pattern that controllers would follow. Alternating current changes the polarity, giving each winding a "push/pull" effect. A notable divergence is how the magnet structure of a stepper is unlike. It is difficult to become an array of magnets to carry nicely on a modest scale. It's besides very expensive. To get around this, well-nigh stepper motors apply a stacked plate method to direct the magnetic poles into "teeth".

There are two types of stepper motors: unipolar and bipolar stepper motors. On a fundamental level, these two types work exactly the aforementioned fashion; electromagnets are turned on in a sequential fashion, inducing the central motor shaft to spin.

The deviation between the 2 types is the voltage levels. A unipolar stepper motor just operates with positive voltage, and then the high and low voltages applied to the electromagnetic coils would be something like 5V and 0V. A bipolar stepper motor has two polarities, positive and negative, so its high and low voltages would be something like 2.5V and -2.5V. Taking these electrical differences into business relationship, the physical difference between these two styles is that the unipolar configuration requires an extra wire in the centre of each whorl to permit current to menstruation through either to one end of the curlicue or the other. These ii reverse directions produce the two polarities of the magnetic field, effectively mimicking the positive and negative voltage capabilities of the bipolar stepper motor. Although both of these have a overall voltage range of 5V, the bipolar stepper motor will actually take more torque because current flows the entire coil, producing a stronger magnetic field to induce the shaft to rotate to the advisable angle. On the other hand, unipolar stepper motors only utilize half of the coil length due to the extra wire in the middle of the coil, so less torque is available to magnetically hold the shaft in place.

A two phase bipolar motor has 2 groups of coils. A 4 phase unipolar motor has four. A 2-phase bipolar motor will have 4 wires - 2 for each phase. Some motors come with flexible wiring that allows you lot to run the motor as either bipolar or unipolar.

Driving a Stepper

Driving a stepper motor is a scrap more complicated than driving a regular brushed DC motor. Stepper motors require a stepper controller to energize the phases in a timely sequence to make the motor turn.

There are several different ways that stepper motors are able to exist driven including full step, one-half step, and microstepping. Each of these driving styles offer dissimilar amounts of torque and step sizes that the stepper motor tin utilize.A full footstep bulldoze always has two of the electromagnets "turned on". To rotate the primal shaft, one of the electromagnets gets turned off and the next electromagnet is turned on, causing the shaft to rotate 1/4 of a tooth (at least for hybrid stepper motors). This style of always having two electromagnets on has the most torque out of all of the styles, just the largest pace size. A half footstep drive alternates between having two electromagnets and only one electromagnet turned on. To rotate the cardinal shaft, the first electromagnet is energized as the first step, and so the 2d one is also energized while the first i is nevertheless powered for the second step. The third step turns off first electromagnet and the fourth pace turns on the third electromagnet, all while the second electromagnet is still powered. This pattern, shown in a picture in a higher place, uses twice as many steps as the full stride drive, allowing for half of the step size, merely it likewise has less overall torque since there are not always two electromagnets holding the central shaft in identify. Microstepping, not surprisingly, has the smallest possible step size out of these styles. One of the near common means to peform microstepping is to do "sine cosine microstepping". This ways that the electric current flowing through each scroll is manipulated such that a sine/cosine moving ridge is created. The "overlap" of the waves betwixt two coils results in a large number of substeps. The actual number of substeps is dependent on how many singled-out changes in current you can provide to the coils, but microstepping will nevertheless have the smallest step sizes, and thus the nigh precise movement, out of all of the styles. The torque associated with this manner is dependent on how much current is flowing through the coils at a particular time, but will always be less than the full step bulldoze.

The simplest blazon of driver tin exist congenital with a handful of transistors. These are simply switched on and off in sequence to energize the phases and step the motor. Unipolar drivers are relatively cheap to build, but but work with unipolar motors. There is an first-class tutorial on how to build one at the Arduino site.

Driving a bipolar motor requires ii full H-bridges so it can opposite the electric current to the phases. H-bridges can be tricky to build from scratch. But there are plenty of H-span chips available to simplify the task.The L293D is i of the most popular and economic chips. These tin be found at the heart of most first-generation motor shields.

Post-obit code snippet tin can be used to control stepper motor using arduino lath.

                              Run across code snippet #half dozen

Applications:

• 3D Printers
• CNC Machines
• Camera rigs Robotics
• Printers
• Precision Gearmotors

Advantages:

• Precise repeatable positioning
• Precise speed command
• Excellent low-speed torque
• First-class 'belongings torque' to maintain position

Limitations:

• Depression efficiency
• May need encoder or limit switch to establish a reference position
• Subject to missed steps if overloaded

More than details of stepper motor: http://www.instructables.com/id/How-to-employ-a-Step...

For good quality stepper motors & drivers visit Sparkfun.

Step 11: How yous select correct motor for your robot?

Choosing a motor that is suitable for your job is ane of the most of import parts of planning a robotics project. The practiced news is that there are many types of motors from which to choose and, as the joke goes, the bad news is that there are many types of motors from which to cull.

To choose the electrical motors that can fit for your projection you should consider some important motor specifications:

• Torque
• Speed
• Precision and Accuracy
• Voltage
• Price
• Form Factor

Torque is a mensurate of a motor's ability to provide a "turning strength". In a robot, the motor torque is conveyed to a cycle or a lever, which then causes the robot to motion or the lever to lift, button, or pull something. Torque is measured in terms of force times the perpendicular distance between the force and the bespeak of rotation, i.e. the shaft of motor. It is unremarkably given in terms of ounce-inches (oz-inch), gram-centimeters (gm-cm) or pes-pounds (ft-lbs). Ounce-inches (oz-in) is the well-nigh common.

Estimating the required torque is a difficult task. Nosotros need to know the mass of the load/rover and the friction in gild to determine the torque for motor selection. Getting a mass estimate (or even better an bodily mass) is disquisitional for choosing a motor. If yous are designing based on a mass approximate y'all should use a good margin for mass bloating. Friction is a force than opposes the motion between two surfaces in contact with one another. You have to consider static friction, dynamic friction and rolling friction to accurately measure out the torque.

In order to drive the robot, the motor torque must at a minimum overcome the external torque of the friction forcefulness acting on the radius of the cycle. Use the following equation to find required torque:

T = 8 x C x W x D

where:

• T is the torque in oz-in
• C is the coefficient of friction
• W is the weight in lbs
• D is the wheel diameter in inches

Friction varies from 0.001 to 0.03. Every bit an example, for a C= 0.03, the minimum torque to move a 5 lb robot with 4 inch diameter wheels would exist:

T = viii x 0.03 10 5lb x 4in = four.8 oz-in

A motor tin maintain a constant speed merely if the torque is greater than the combined forces in opposite of the robot movement. In case that the motor torque is smaller than the opposition torque, the motor will stop and may exist damaged since the electrical energy cannot be converted into torque.

After determining how much strength/torque yous need, the next step is to make up one's mind the speed that the wheel needs to plough. Speed requirement is easier to gauge and depends on how fast your robot should run. DC motors run at speeds of thousands of RPMs with low torque but most robots required less speed compare to this. The output torque is much as well depression to move the robot. So, this is not suitable for driving a robot. In order to use the motor, nosotros add together a gearbox to reduce the motor speed and increase the output torque. The same motor may produce unlike torque and speed ratings depending on the gearing used betwixt the motor and the gearbox output shaft. Many DC motors come with a gearbox already fastened and these are simply called DC gear motors and are the blazon of motors. By reducing the speed, you besides increase the positional accuracy of the motor. The speed, torque and accuracy of a gear motor are affected directly by the gear ratio, as seen in these equations:

Output Speed = Motor Speed / Gear Ratio

Output Accuracy = Motor Accuracy / Gear Ratio

Although the reduction ratio plays a large part in determining the Gearbox Output Torque, at that place is as well an inefficiency that is introduced through the use of a gearbox. Some of the torque of the motor is converted into heat and lost due to friction betwixt the gears. Another disadvantage is that gear motors are not precise. That is, ii motors of the aforementioned model, manufactured on the same day, and operated with identical electric current and voltages, volition NOT turn at exactly the same rate. Thus a robot with two drive motors, the most common configuration, will not move in a straight line without some manner of controlling individual motor speeds.

With gearboxes, torque and speed tin can be seen as one interchangeable characteristic: If you need more torque and less speed, try to find the same motor with a gearbox with a higher reduction ratio. If you demand more speed and less torque, try to notice the same motor with a gearbox with a lower reduction ratio. Nevertheless, it is not appropriate purchase gearboxes and motors separately to mix and match, unless they are specifically designed for each other. There'south a lot that can go wrong in gearbox customization and for most users it's a lot less hassle to simply buy a motor with a gearbox already attached.

I chief disadvantage is that gear head motors are not precise. Some applications have need of very precise movements and angles similar robotic artillery and model plane control surfaces. Stepper motors and servo motors are best suited to these sorts of applications. Servo motors take internal position regulation and are geared downwards to lower speeds, resulting in very precise position control. Stepper motors motility step by pace, using magnetic fields to movement the motor in discrete increments. Depending on the step size of the motor and the step blueprint of the controller stepper motors can achieve extremely accurate position. Often stepper motors accept step angles as depression as i.8º and with micro-stepping controllers can be advanced one sixteenth of a footstep at a time. Stepper motors likewise have the advantage of high belongings torque- when the motor is stopped simply however powered, information technology will hold its position firmly.

In general, servo motors are smaller in size and have less torque than a stepper motor. Most servos also have limited range of movement. A typical servo motor has a rotation range of 180º or less, although there are some that are capable of multiple revolutions or even continuous rotation. Servos are most common in RC (remote command) applications where it is not necessary to take high torque or a large range of motion. Stepper motors, on the other hand, are used in applications where farthermost precision or high torque is required. CNC (computer numerical command) machines are a prime number example of what stepper motors are used for.

Some applications require high speed and light weight such as multi copter and drone, in that instance high efficient brushless dc motor is used.

Another important consideration is operating voltage. Earlier planning what battery packs will be used in the project, you accept to detect the nominal voltage where the motor runs Typically the college the voltage the higher the speed of the motor. You can look at the Voltage Constant from the motor data sheet to figure out how fast you will go per volt.

Nearly common electric motors used in robotics projects are the DC motors. Common preferred voltages for DC motors are 3, 6, 12 and 24 Volts. If to a motor is applied a voltage lower than the voltage mind in the information canvas, the torque will not overcome the internal friction – generally from the brushes. Also, if a higher voltage than that supported is applied to the motor, it may oestrus upward and can be damaged.

Step 12: Conclusion

Most of the picture of this instructable is taken from the Cyberspace. Some topic, image and text were copied from:

1. https://www.sparkfun.com/

2. https://en.wikipedia.org/

3. https://acquire.adafruit.com/

4. world wide web.microchip.com/

Read more

Code

Credits

murphyheamose.blogspot.com

Source: https://www.hackster.io/taifur/complete-motor-guide-for-robotics-05d998
